Name: ASME B36.10M Welded And Seamless Wrought Steel Pipe For Low Temperature
Brand: TORICH INTERNATIONAL LIMITED
SKU: Pour les appareils de traitement des eaux usées
Price: 900.00 USD
Availability: InStock

Quantité De Produit:	1 tonnes
Prix:	800-1000 USD/Tons
Emballage Standard:	En paquets ou dans des boîtes en bois.
Période De Livraison:	20 à 30 jours sur les produits
Méthode De Paiement:	LC, D/A, D/P, T/T, Western Union, MoneyGram
Capacité D'approvisionnement:	60000 tonnes / tonnes par an

L'information de détails

Description du produit

Informations détaillées

Lieu d'origine

Zhejiang / Chine

Nom de marque

TORICH

Certification

ISO9001, ISO14001, TS16949

Numéro de modèle

Pour les appareils de traitement des eaux usées

Technique:

Cold tiré, roulé à chaud, à froid roulé

Application:

Tuyau hydraulique, tuyau de chaudière

Standard:

ASTM, GB, DIN, API, BS

Alliage ou pas:

Non-allié

Épaisseur:

2 - 120 mm

Forme de section:

rectangulaire/ carré/ rond

Grade:

A106GrB A53GrB API5L A33Gr6 P11

Pipe spéciale:

Tubes en acier sans soudure de précision

Diamètre extérieur (rond):

30 - 426 mm

Longueur:

<12 m ou comme demande du client, exigence du client

Nom du produit:

tuyaux en acier sans soudure

forme:

Rond/Carré/Rectangulaire

Taper:

Sans couture

Description du produit

ASME B36.10M Welded And Seamless Wrought Steel Pipe For Low Temperature 0

ASME B36.10M Welded and Seamless Wrought Steel Pipe

Material

ASME B36.10M defines dimensional standardization for welded and seamless wrought steel pipe used in piping and pipeline systems under high or low temperatures and pressures. The standard focuses on outside diameter (OD), wall thickness (Schedules), and mass/weight, while the steel grade (chemistry & strength) is selected separately based on service conditions and project codes.

Typical compatible materials include carbon steel and low-alloy steels produced as Seamless (SMLS), ERW, LSAW/SAW, depending on the required performance, inspection level, and cost targets.

Specifications

Size Range (NPS): commonly supplied from NPS 1/8 up to NPS 60 (Schedule-based OD/W.T. system).
Wall Thickness System: Schedule numbers plus legacy designations STD / XS / XXS.
Manufacturing Types: Seamless, ERW, SAW/LSAW (depending on the selected material specification)
Length: SRL / DRL / fixed length (project-based)
Ends: Plain end, beveled end; threading when applicable
Threading Note: Schedules 5 and 10 do not permit threading in accordance with ASME pipe thread requirements.

Key Features

Interchangeable schedule system for standardized wall thickness selection and global supply compatibility.
Supports welded and seamless pipe dimensional standardization for broad pressure/temperature service.
Clear designation rules (NPS/DN) used widely in industrial piping and pipeline design documentation.

Our Advantages

1) “Is ASME B36.10M a material standard or only a dimension standard?”

Answer: It is a dimension standard (OD, wall thickness schedules, mass). Material compliance is ensured by ordering the pipe to a material specification (e.g., ASTM A106, ASTM A53, API 5L, ASTM A333, ASTM A335) while keeping B36.10M dimensions. This avoids specification mismatch at inspection and site acceptance.

2) “How do I choose the right Schedule for pressure and fabrication (threading, welding, etc.)?”

Answer: B36.10M provides the standardized Schedule/STD/XS/XXS framework for wall thickness selection, while pressure design is finalized by the project code and material strength. We support buyers by confirming Schedule availability, end preparation, and threading feasibility—including the key limitation that Sch 5 and Sch 10 are not suitable for threading.

3) “How can I ensure cross-standard equivalence for international projects (EU/RU/JP/CN)?”

Answer: We can align dimensional and documentation expectations by referencing regional counterparts for dimensions and typical pipe usage standards:

EU: EN 10220 for dimensions/mass tables (with EN material standards as required).
China: GB/T 17395 for steel tube dimensions/shapes/masses/tolerances.
Russia / Japan: common pipe standards (GOST/JIS) can be mapped in the PO and MTC package to support inspection and customs acceptance.

Chemical Composition

Grade (Example)	C	Mn	Si	P	S	Cr	Ni	Mo	Cu	V	Nb	Ti
ASTM A106 Gr B	0.30	0.29–1.06	—	0.04	0.04	0.40	0.40	0.15	0.40	0.08	—	—
ASTM A53 Gr B	0.30	1.20	—	0.05	0.045	0.40	0.40	0.15	0.40	0.08	—	—
API 5L Grade B (PSL1, ≤25 mm)	0.28 (SMLS) / 0.26 (Welded)	1.20	—	0.030	0.030	(≤0.50*)	(≤0.50*)	(≤0.15*)	(≤0.50*)	max (per footnote)	max (per footnote)	max (per footnote)
ASTM A333 Gr 6	0.30 (max)	0.29–1.06	0.10 (min)	0.025 (max)	0.025 (max)	—	—	—	—	—	—	—
ASTM A335 P11	0.05–0.15	0.30–0.60	0.50–1.00	0.025 (max)	0.025 (max)	1.00–1.50	—	0.44–0.65	—	—	—	—

Mechanical Properties

Grade (Example)	Yield Strength (min)	Tensile Strength (min)	Elongation
ASTM A106 Gr B	240 MPa	415 MPa	(per standard/test specimen)
ASTM A53 Gr B	240 MPa	415 MPa	Calculated per standard/formula
API 5L Grade B (PSL1)	245 MPa	415 MPa	Specified by formula (Af)
ASTM A333 Gr 6	240 MPa	415 MPa	30% (min, shown in datasheet)
ASTM A335 P11	205 MPa	415 MPa	30% (min)

Standards Reference (ASTM / EN / GOST / JIS / GB)

ASTM/ASME: ASME B36.10M (dimensions & schedules) for welded/seamless wrought steel pipe.
EN: EN 10220 (dimensions and masses per unit length for seamless/welded steel tubes).
GOST: Commonly referenced pipe standards include GOST 8732 (seamless hot-finished) and other related GOST pipe standards depending on type/application.
JIS: Commonly referenced carbon steel pipe standards include JIS G3452 (ordinary piping) and other pressure/high-temp pipe standards as required.
GB: GB/T 17395 (dimensions, shapes, masses and tolerances of steel tubes).

Application Areas

General Industries: oil & gas, petrochemical, power generation, water treatment, construction, HVAC, and general process piping.

Where it is used (examples):

Oil & Gas: gathering lines, plant piping, utility piping, some pipeline components (grade/spec dependent)
Petrochemical/Chemical: process lines, steam/condensate lines, instrument air headers
Power & Energy: boiler auxiliary piping, high-temperature lines (alloy grades as required)
Water & Utilities: water transmission, fire protection headers (standard and spec dependent)
Construction/Industrial: structural and mechanical piping runs, pipe racks, supports (when allowed by project spec)

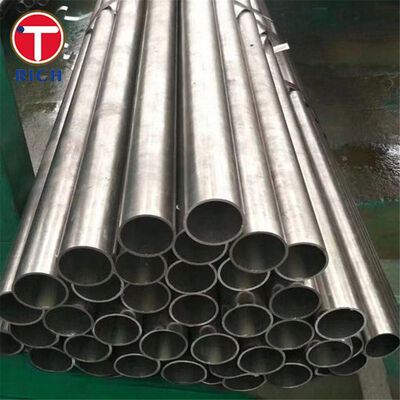

ASME B36.10M Welded And Seamless Wrought Steel Pipe For Low Temperature 1

ASME B36.10M Welded And Seamless Wrought Steel Pipe For Low Temperature 2

ASME B36.10M Welded And Seamless Wrought Steel Pipe For Low Temperature 4

ASME B36.10M Welded And Seamless Wrought Steel Pipe For Low Temperature 6

Q: Are you trading company or manufacturer ?

A: manufacturer,also can do trading.

Q: How long is your delivery time?

A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact with me.
